Field Sites

1.0 Overview

Site map templates to help field teams navigate a site, illustrating settlements, boundaries, and access routs, and locator maps showing geographic locations within local and national contexts.

1.1 Site Maps

Import AOI

crs_master = sf::st_crs('epsg:4326')
aoi_site   = sf::read_sf("../assets/inputs/chilwa_watershed_4326.shp") |>
  sf::st_cast() |> sf::st_transform(crs_master)
bbox_site  = terrainr::add_bbox_buffer(aoi_site, 20000, "meters")
vbox_site = terra::vect(bbox_site)

tmap::tmap_mode("view")
tmap::tm_shape(aoi_site) +
  tmap::tm_borders(col = "red") +
  tmap::tm_basemap("Esri.WorldImagery")

Figure 1a: Interactive map showing project boundary and ESRI’s basemap

Import Basemap

# zoom = 12 sources basemap at scale of 1:150,000
basemap_150k = maptiles::get_tiles(
  bbox_site,
  zoom      = 10,
  crop      = T,
  provider  = "OpenTopoMap"
)

tmap::tmap_mode("view")
tmap::tm_shape(basemap_150k) + tmap::tm_rgb() +
  tmap::tm_shape(aoi_site) +
  tmap::tm_borders(col="red")

Figure 1b: Site map showing project boundary and downloaded basemap OpenTopoMap

Build Map

tmap::tmap_mode("plot")
site_map = tmap::tm_shape(basemap_150k) + tmap::tm_rgb() +
  tmap::tm_shape(aoi_site) +
  tmap::tm_borders(lwd = 1, col = "red") +
  tmap::tm_graticules(lines=T,labels.rot=c(0,90),lwd=0.2) +
  tmap::tm_credits("EPSG:4326", position = c("left", "bottom")) +
  tmap::tm_scale_bar(
    c(0, 10, 20, 40),
    position = c("RIGHT", "BOTTOM"),
    text.size = .5
    ) +
  tmap::tm_compass(
    type = "4star", size = 1.5,
    color.dark = "gray60", text.color = "gray60",
    position = c("left", "top")
    )

Save output

# `width` & `height` controls output resolution
# `dpi` controls size of map attributes relative to output resolution
tmap::tmap_save(site_map, width=15120, height=15120, asp=0, dpi=600,
  "/Users/seamus/Repos/map-templates/assets/outputs/01-site-draft.png"
  )
site_map

Figure 1c: Site Map rendered with customized attributes and resolution (15120x15120)

1.2 Locator Maps

Import AOI

aoi_country = giscoR::gisco_get_countries(country = "Malawi", resolution = "3") |>
  st_cast() |> st_transform(crs_master)
aoi_region = giscoR::gisco_get_countries(
  country = c("Malawi", "Zambia", "Tanzania", "Mozambique"), resolution = "3") |>
  st_cast() |> st_transform(crs_master)

bbox_site  = terrainr::add_bbox_buffer(aoi_site, 20000, "meters")
bbox_country = terrainr::add_bbox_buffer(aoi_country, 40000, "meters")
bbox_region = terrainr::add_bbox_buffer(aoi_region, 80000, "meters")

vbox_site = vect(bbox_site)
vbox_region = vect(bbox_region)
vbox_country = terra::vect(terra::ext(vect(aoi_country)) * 1.3) |> sf::st_as_sf()
sf::st_crs(vbox_country) <- "epsg:4326"

# Interactive map mode: "view"
tmap::tmap_mode("view")
tmap::tm_shape(vbox_country) +
  tmap::tm_borders(lwd = 2, col = "green") +
  tmap::tm_shape(aoi_region) +
  tmap::tm_borders(lwd = 1, col = "blue") +
  tmap::tm_shape(aoi_site) +
  tmap::tm_borders(lwd = 2, col = "red")

Figure 1d: Interactive map showing site boundary, national borders, and national bounding box

Import Basemap

# zoom = 8 returns scale of 1:2,000,000
basemap_4m = maptiles::get_tiles(
  bbox_region,
  zoom      = 8,
  crop      = T,
  provider  = "CartoDB.Positron"
)

tmap::tmap_mode("plot")
country_map = tmap::tm_shape(vbox_country) + tm_borders(lwd = 0.0, col = "black") +
  tmap::tm_shape(basemap_4m) + tm_rgb(alpha=0.2) +
  tmap::tm_shape(aoi_site) + tm_borders(lwd=2, col = "red", fill="#e28672", fill_alpha=0.5) +
  tmap::tm_shape(aoi_region) + tm_borders(lwd = 0.5, col = "black") +
  tmap::tm_compass(type="4star", size=1.1, color.dark = "gray60", text.color="gray60",position=c("LEFT", "TOP")
    )

tmap::tmap_save(country_map,
                "/Users/seamus/Repos/map-templates/assets/outputs/02-country-map.png"
                )
country_map

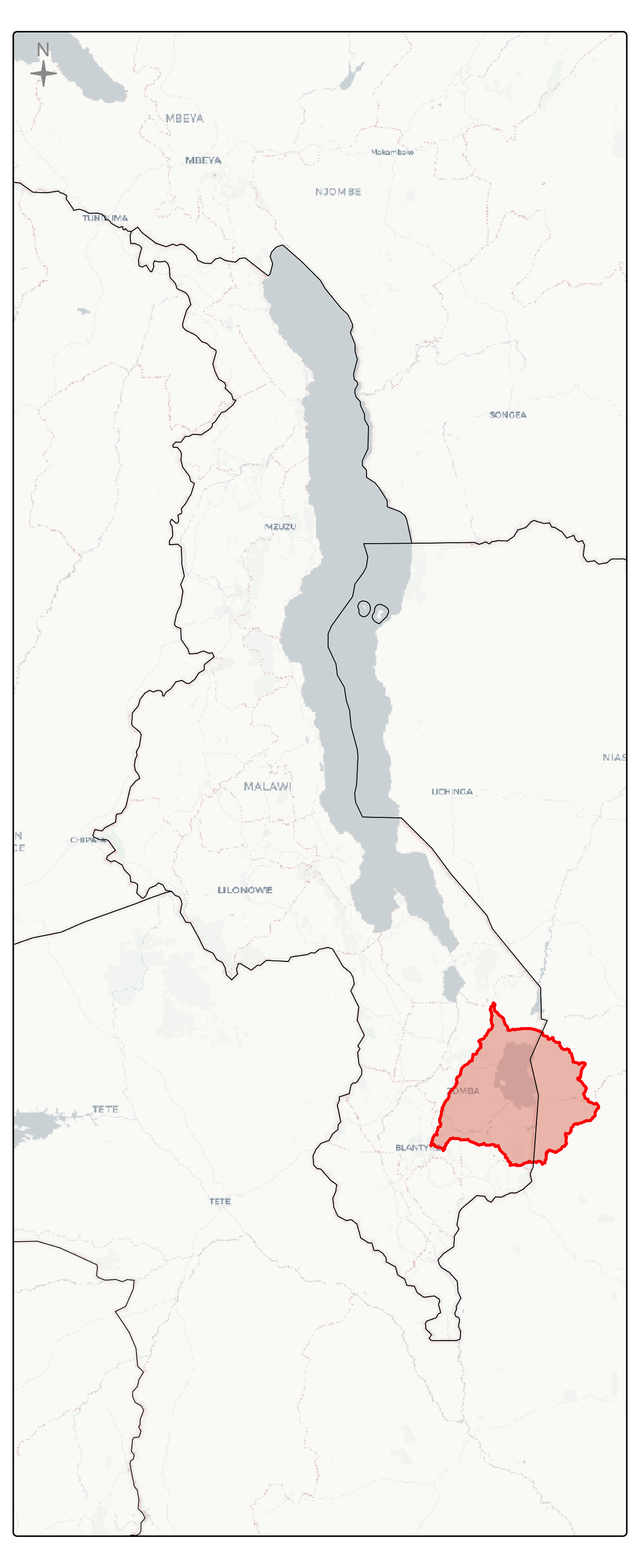

Figure 1e: Interactive map showing site boundary, national borders, and downloaded basemap.

Build Map

main_map = tmap::tmap_grob(site_map)
inset_map = tmap::tmap_grob(country_map)

locator_map = ggdraw() +
  draw_plot(main_map) +
  draw_plot(inset_map, x = -0.39, y=0.4, height = 0.45)

Save output

ggsave(locator_map, "/Users/seamus/Repos/map-templates/assets/outputs/03-locator-map.png")

1.3 Render Maps

locator_map

Figure 1f: Locator map showing site area and location at 1:4,000,000 & 1:150,000 scales
